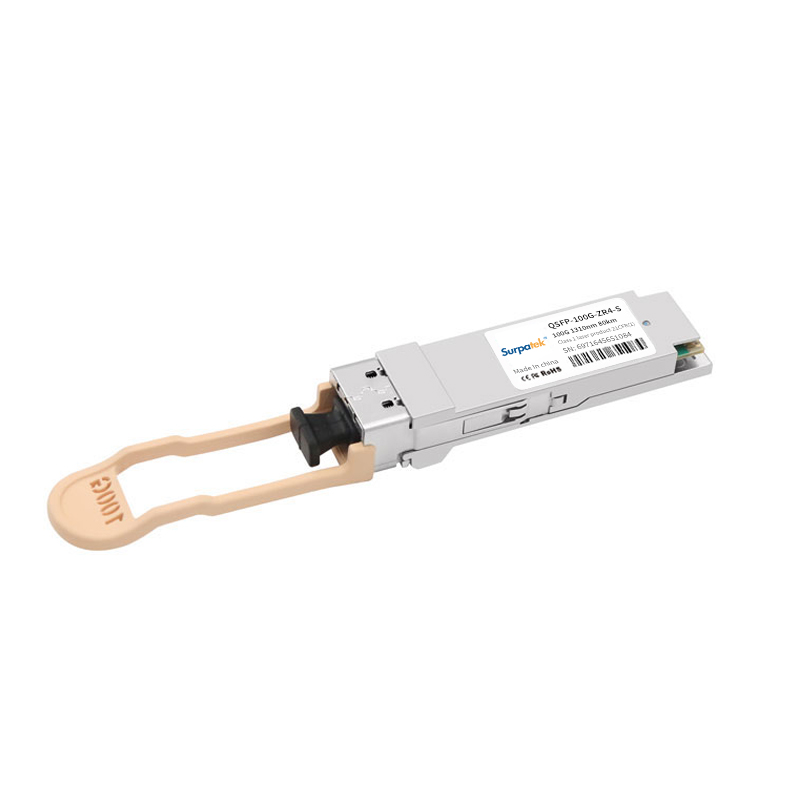

Cisco QSFP-100G-ZR4-S Compatible 100GBASE-ZR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 80km, LC, DOM)
Product Specification:
Cisco Compatible | QSFP-100G-ZR4-S | Vendor Name | SURPATEK |
Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
Wavelength | 1310nm | Max Cable Distance | 80km |
Connector | LC Duplex | Cable Type | SMF |
Transmitter Type | EML | Receiver Type | APD |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
TX Power | 2~6.5dBm | Receiver Sensitivity | <-28dBm |
Powerbudget | 31dB | Receiver Overload | 2dBm |
Power Consumption | ≤6W | Extinction Ratio | >6dB |
Modulation Format | NRZ | CDR (Clock and Data Recovery) | TX & RX Built-in CDR |
Packaging Technology | BOX Packaging | Host FEC | Supported |
Bit Error Ratio (BER) | 5E-5 | Protocols | QSFP28 MSA Compliant |
Application | 100GBASE Ethernet, Data Center, Telecom | Warranty | 5 Years |
