Cisco QSFP-100G-4WDM-S Compatible 100GBASE-SR4 CWDM QSFP

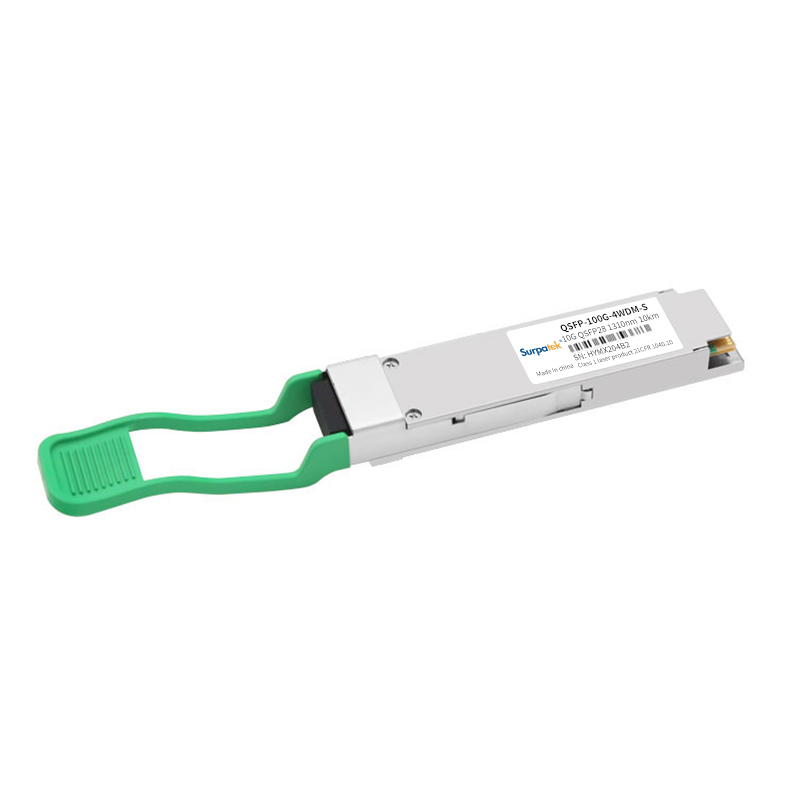

Cisco QSFP-100G-4WDM-S Compatible 100GBASE-4WDM-10 QSFP28 1310nm 10km DOM LC SMF Optical Transceiver Module

*Compatible Cisco , Mikrotik , HUAWEI , ZTE ,HP , etc brands;

*Compatible QSFP28 Optical Transceiver Module

* Compliant with IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, SFF-8665, SFF-8636 and ITU-T G.694.2 standards

Cisco QSFP-100G-4WDM-S Compatible 100GBASE-4WDM-10 QSFP28 Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 10km, LC, DOM)

Product Specification:

Cisco Compatible	QSFP-100G-4WDM-S	Vendor Name	SURPATEK
Form Factor	QSFP28	Max Data Rate	103.125Gbps (4x 25.78Gbps)
Wavelength	1271nm, 1291nm, 1311nm and 1331nm	Max Cable Distance	10km
Connector	LC duplex	Cable Tpye	SMF
Transmitter Type	DML CWDM	Receiver Type	PIN
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
TX Power	-6.5~2.5dBm	Receiver Sensitivity	<-13dBm
Powerbudget	6.5dB	Receiver Overload	2.5dBm
Power Consumption	≤3.5W	Extinction Ratio	>3.5dB
Modulation Format	NRZ	CDR (Clock and Data Recovery)	TX & RX Built-in CDR
Packaging Technology	COB (chip on board) Packaging	Host FEC	Supported
EMC (Electro Magnetic Compatibility)	Supported	Bit Error Ratio (BER)	5E-5
Protocols	QSFP28 MSA Compliant	Transmit and Dispersion Penalty	3.0dB
Application	100GBASE Ethernet, Data Center	Warranty	5 Years
