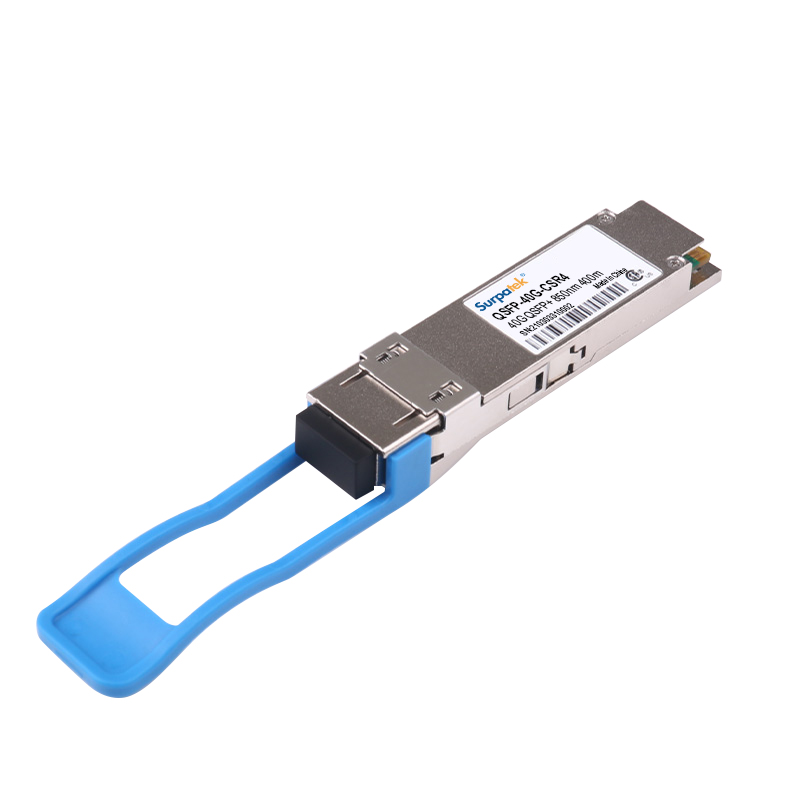

Cisco QSFP-40G-CSR4 Compatible 40GBASE-CSR4 QSFP+ Optical Transceiver Module,
For Ethernet and Data Center (MMF, 850nm, 400m, MTP/MPO, DOM)
Product Specification:
Cisco Compatible | QSFP-40G-CSR4 | Vendor Name | SURPATEK |
Form Factor | QSFP+ | Max Data Rate | 42Gbps (4×10.5Gbps) |
Wavelength | 850nm | Max Cable Distance | 400m@OM4 |
Connector | MTP/MPO-12 Male | Cable Type | MMF |
Transimitter Type | VCSEL 850nm | Receiver Type | PIN |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
TX Power | -7.5~0dBm | Receiver Sensitivity | <-9.9dBm |
Powerbudget | 2.4dB | Receiver Overload | 2.4dBm |
Power Consumption | <1.2W | Extinction Ratio | >3dB |
Transmit and Dispersion Penalty | 3.5dB | Modulation Format | NRZ |
Packaging Technology | COB (chip on board) Packaging | Host FEC | Supported |
Bit Error Ratio (BER) | 1E-12 | Protocols | 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant |
Application | 40GBASE-SR4 40G Ethernet, Breakout to 10GBASE-SR Ethernet, Data Center | Warranty | 5 Years |
