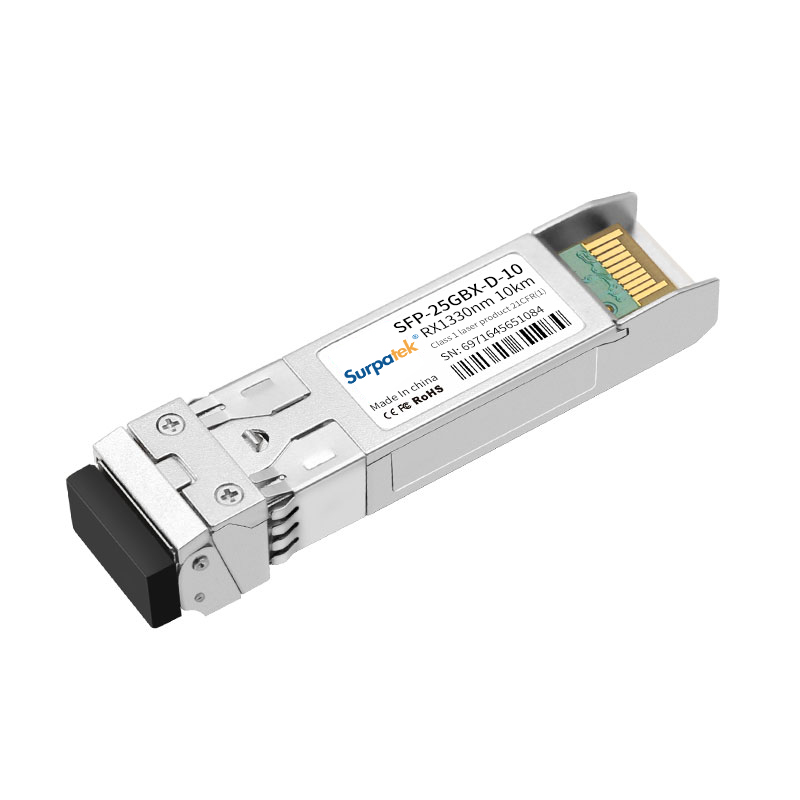

Cisco SFP-25GBX-D-10 Compatible 25GBASE-BX10-D SFP28 Optical Transceiver Module for Data Center and Telecom (SMF, 1330nm-TX/1270nm-RX, 10km, LC, DOM)
Product Specification:
Cisco Compatible | SFP-25GBX-D-10 | Vendor Name | SURPATEK |
Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
Wavelength | 1330nm-TX/1270nm-RX | Max Cable Distance | 10km |
Connector | LC simplex | Media | SMF |
Transmitter Type | DFB BiDi | Receiver Type | PIN |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
TX Power | -2~4dBm | Receiver Sensitivity | <-13dBm |
Power Consumption | 1W | Extinction Ratio | 3.5dB |
Modulation Format | NRZ | CDR | TX and RX |
Transmit and Dispersion Penalty | 3dB | Powerbudget | 11dB |
Packaging Technology | TO-CAN Packaging | FEC Function | Not Supported |
Protocols | MSA Compliant, CPRI, eCPRI | Application | 25GBASE Ethernet, Data Center, Telecom |
