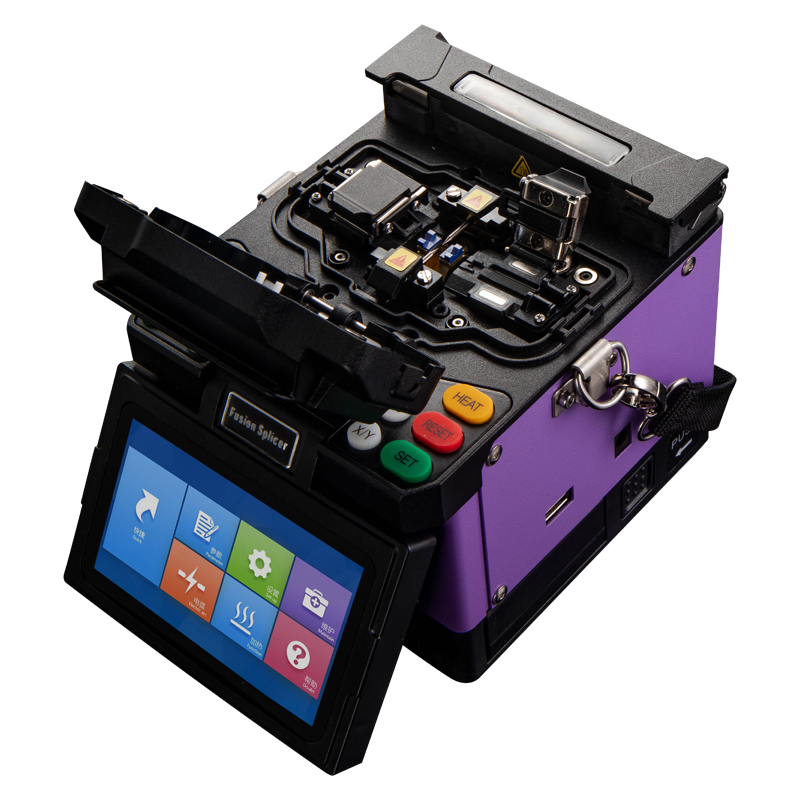

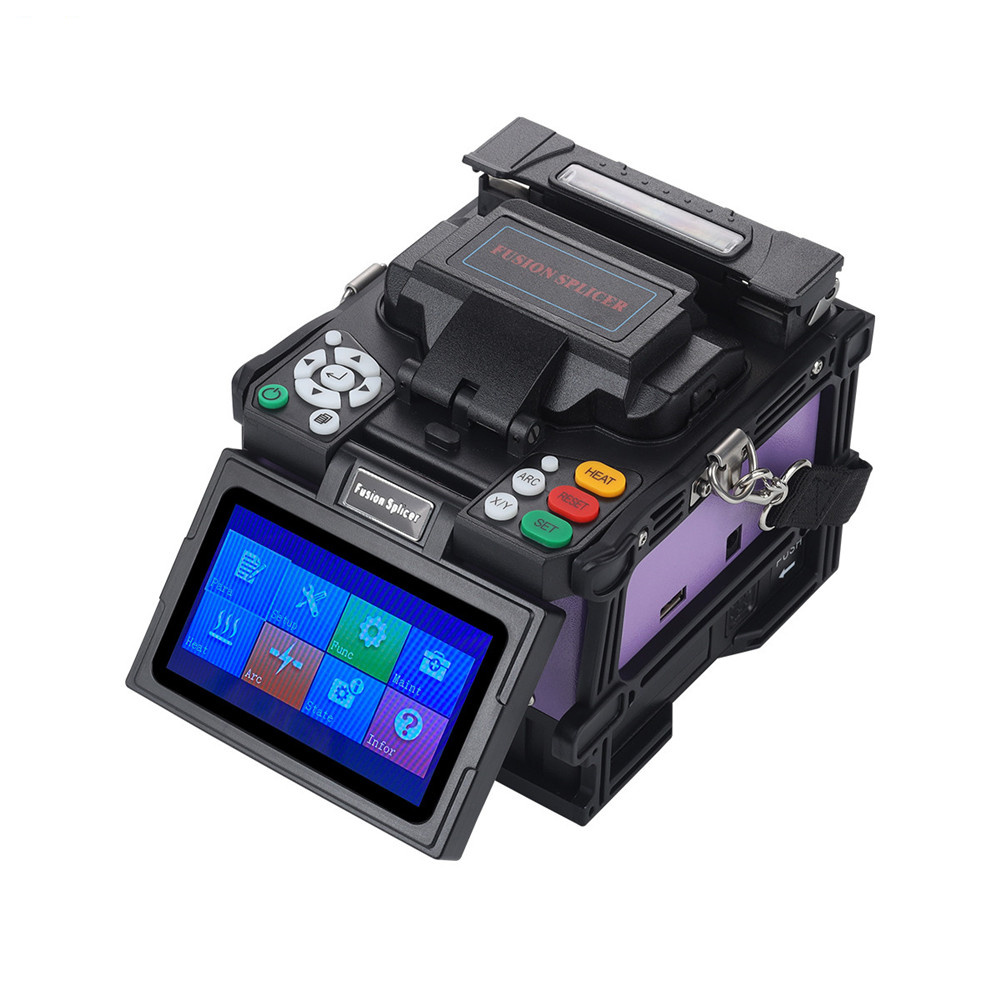

Surpatek X-500 Fusion Splicer Auto Fiber Splicing Machine

*4 motors accurate core to core alignment
*7 seconds splicing & 26 seconds heating
*Automatic & real-time ARC calibration
*Heating temperature and time both adjustable
*Automatic splicing and heating, easy to operate
*Apply to bare fiber, pigtails, drop cable etc.
*Suitable for FTTx, FTTH, CATV projects etc.

Description

Alignment method	4 motors core to core alignment
Applicable fiber	SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
Cladding diameter	80~150μm
Coating diameter	160~1000μm
Cleaved length	5~16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)
Typical splice loss	SM: 0.02dB;MM: 0.01dB;DS: 0.04dB;NZDS: 0.04dB
Return loss	>60dB
Splicing program	40 groups
Operation mode	Manual/ Automatic
Auto- heating	Available
Typical splice time	7 seconds
Typical heating time	26 seconds for 60mm and 40mm shrinkable sleeves
Fiber magnification	250X(X or Y view), 125X(X and Y view)
Viewing display	Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
Data storage	4000 groups data records
Loss evaluation	Available
Tension test	1.8~2.25N
Interface	GUI menu interface, easy for operation

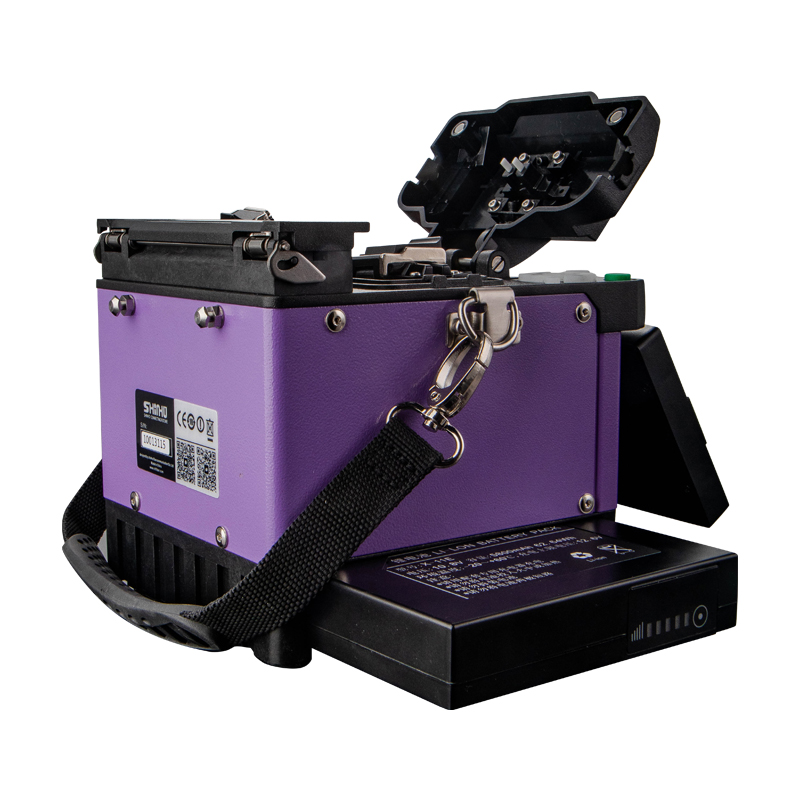

Battery capacity	5200mAh Li-battery, 250 cycles splicing and heating
Power supply	Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life	More than 4000 ARC discharges, easy to replace
Terminals	USB 2.0 port, for software upgrading, records exporting
Operating condition	Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃~+50℃;Wind:max 15m/s
Dimension/Weight	149mm (L)120mm (W)127mm (H) /1.90kg (incuding battery)

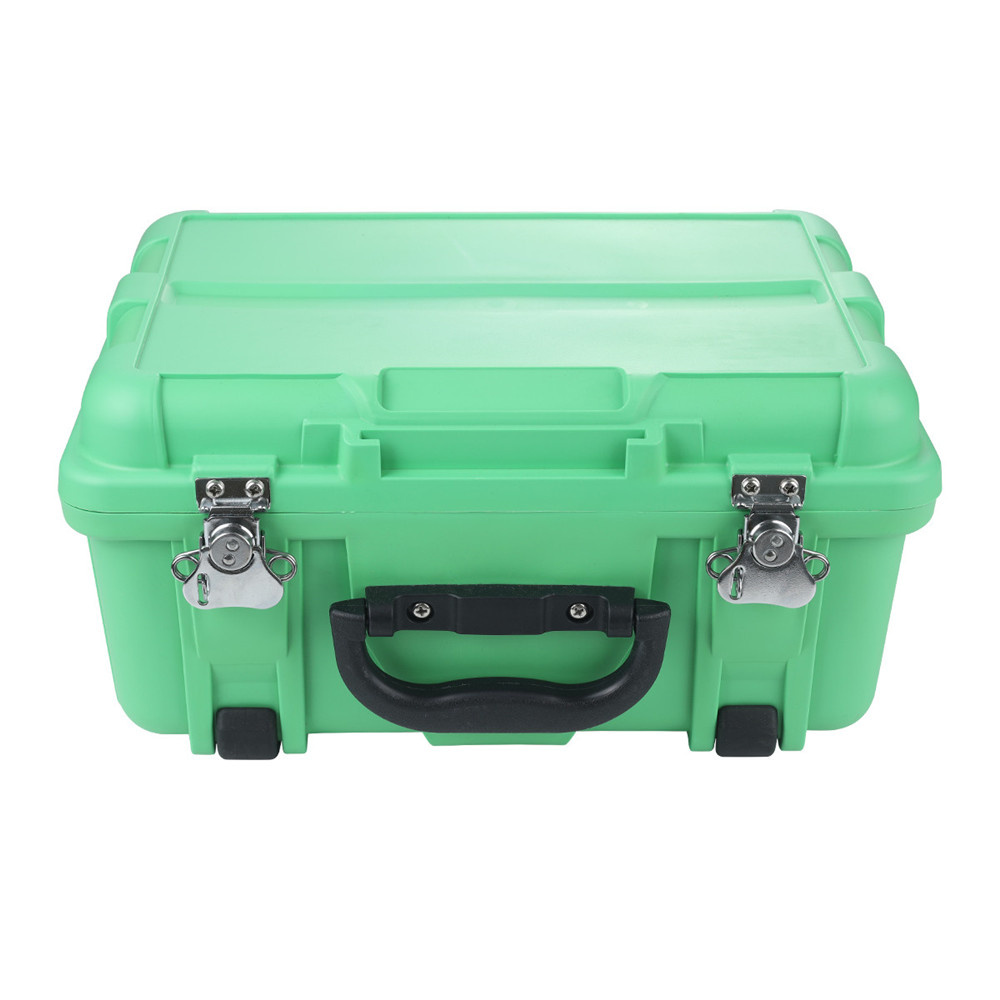

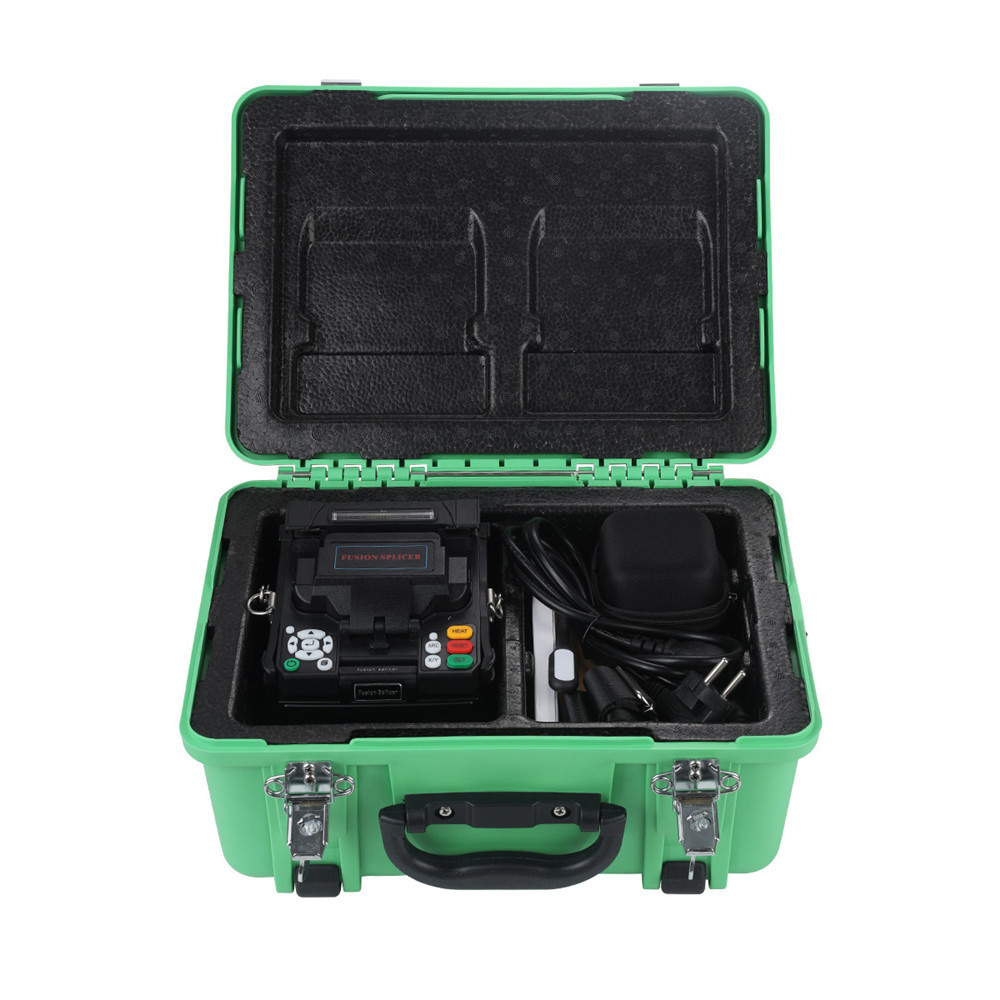

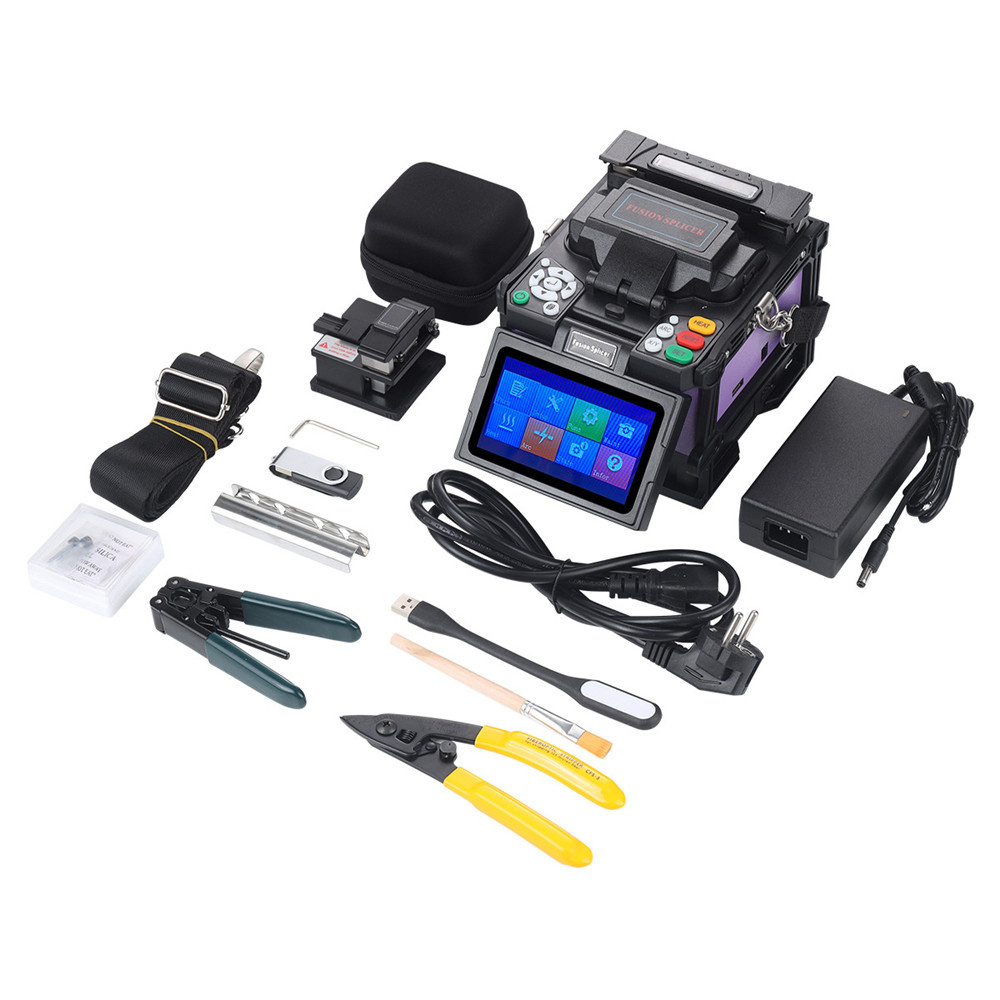

Packages	423727 cm
Weight	6.5kg

Additional information

Weight	8 kg
Dimensions	43 × 37 × 27 cm
