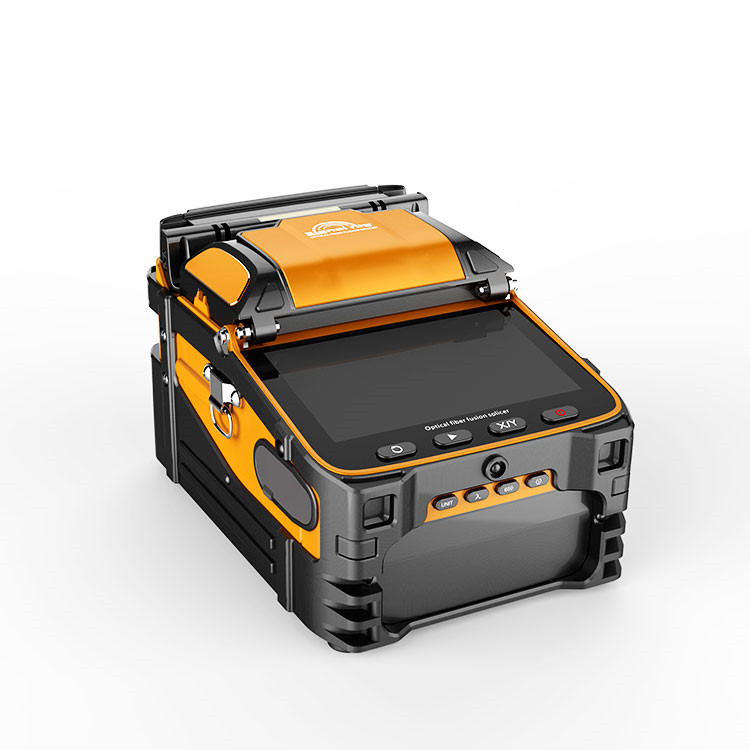

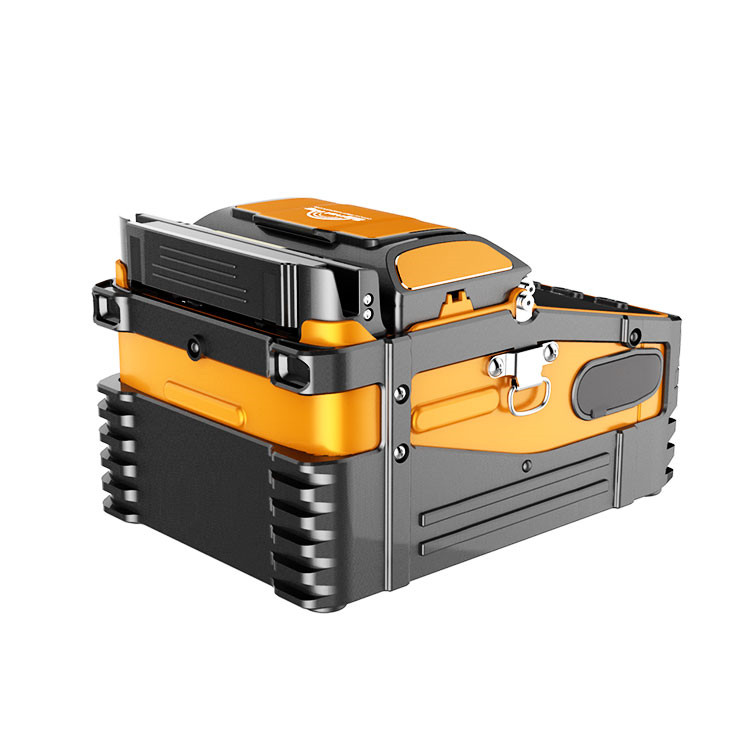

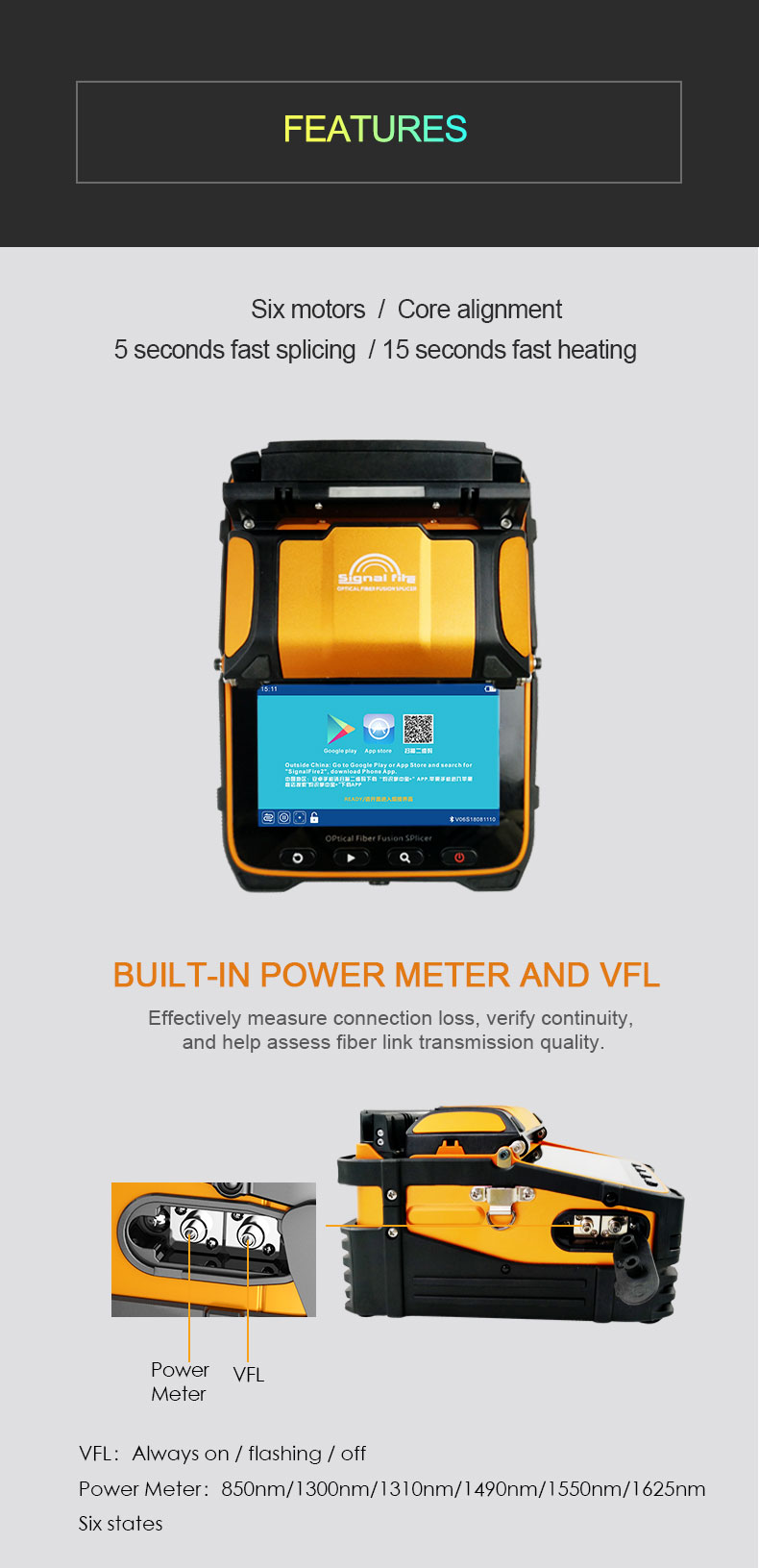

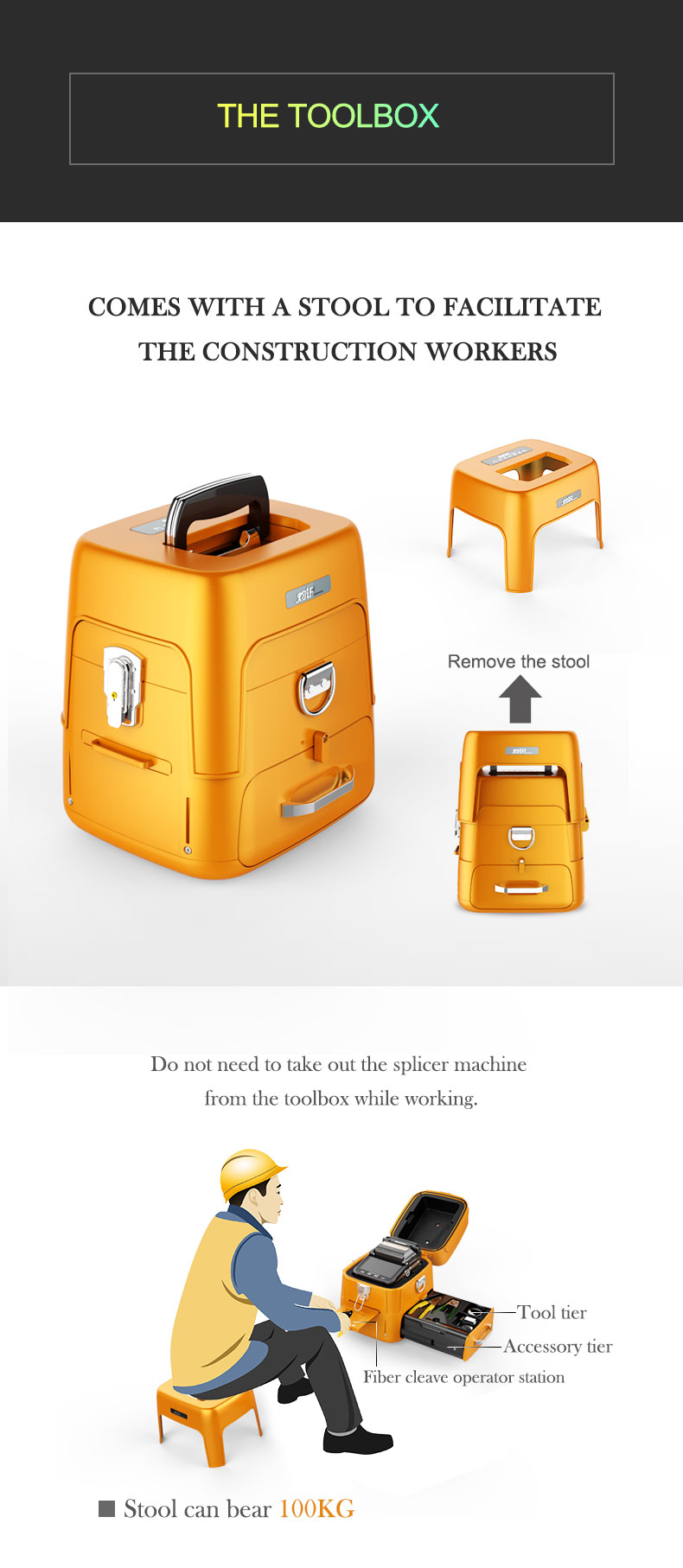

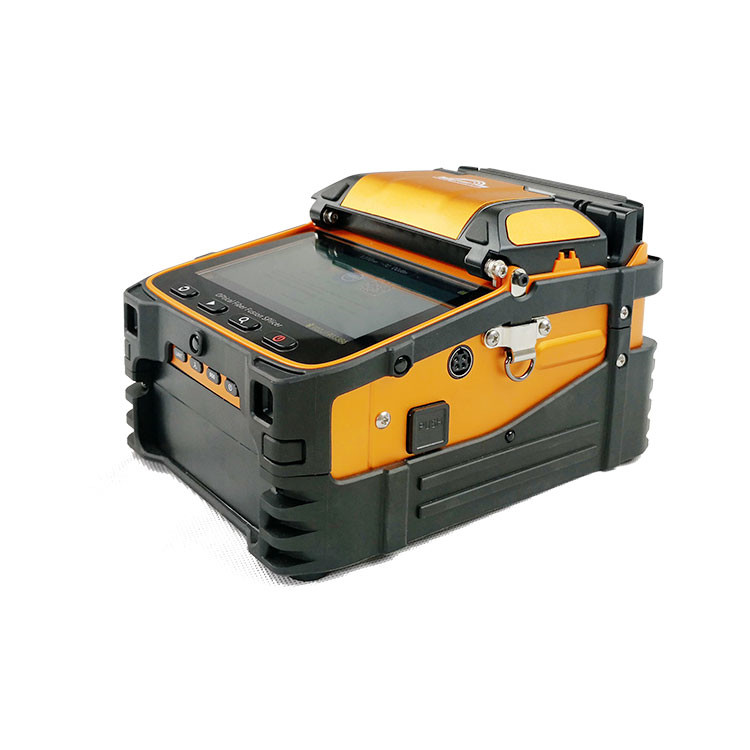

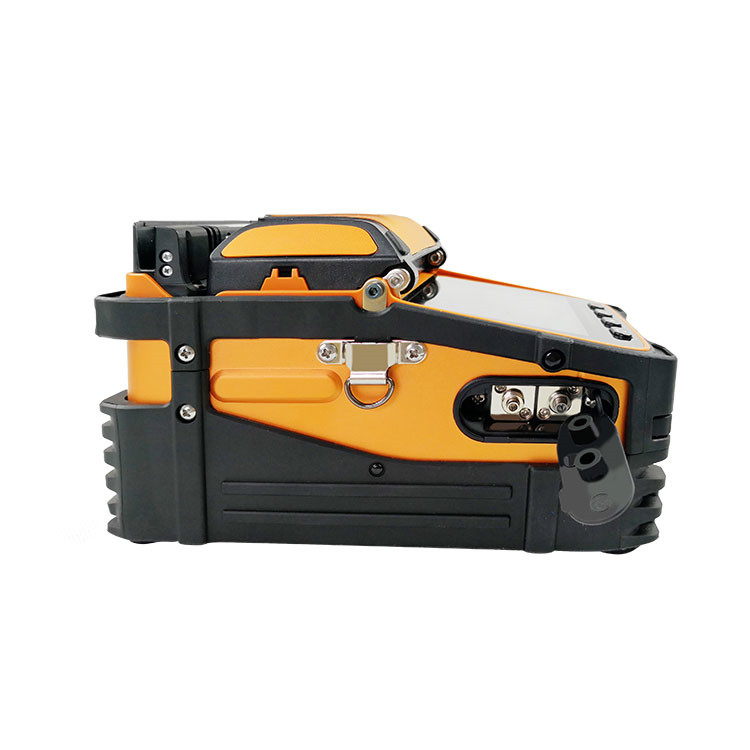

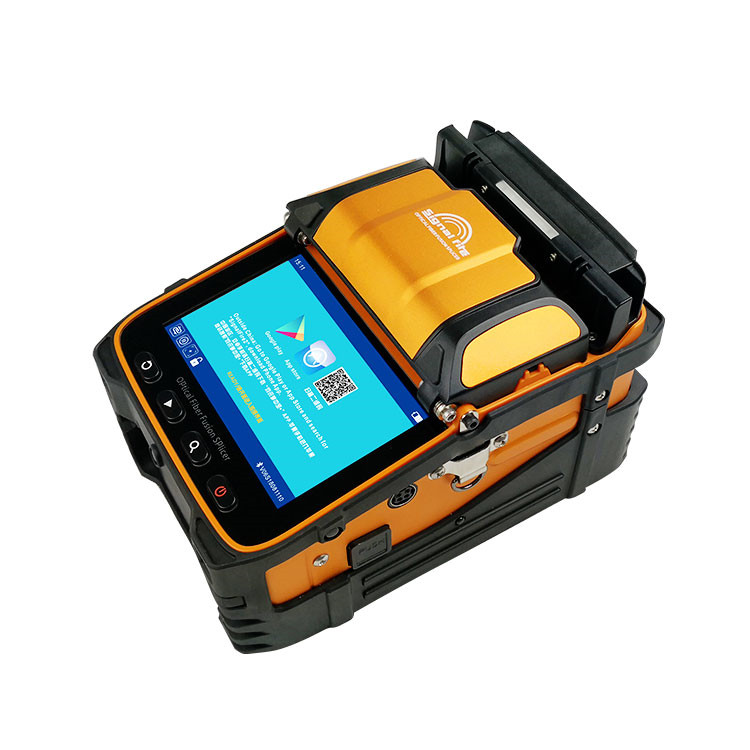

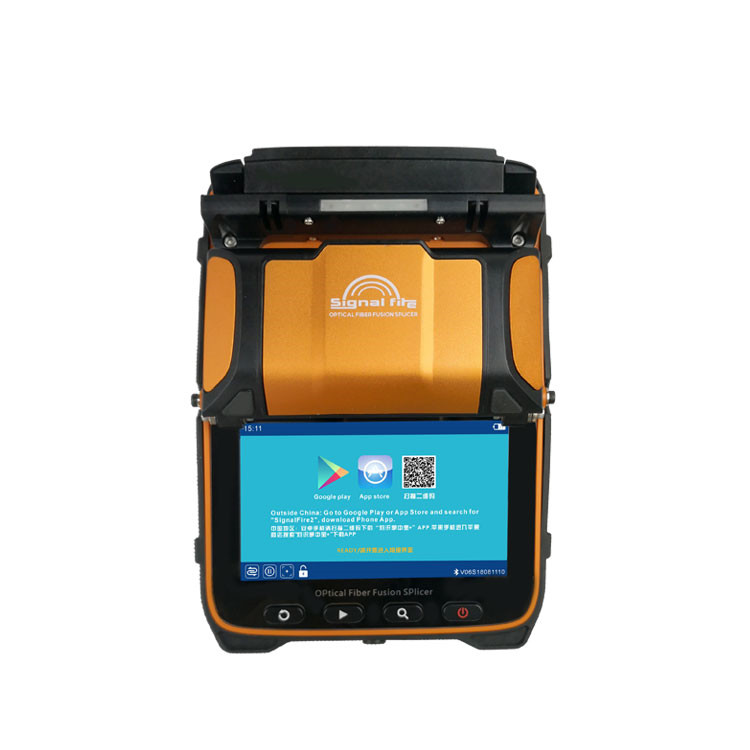

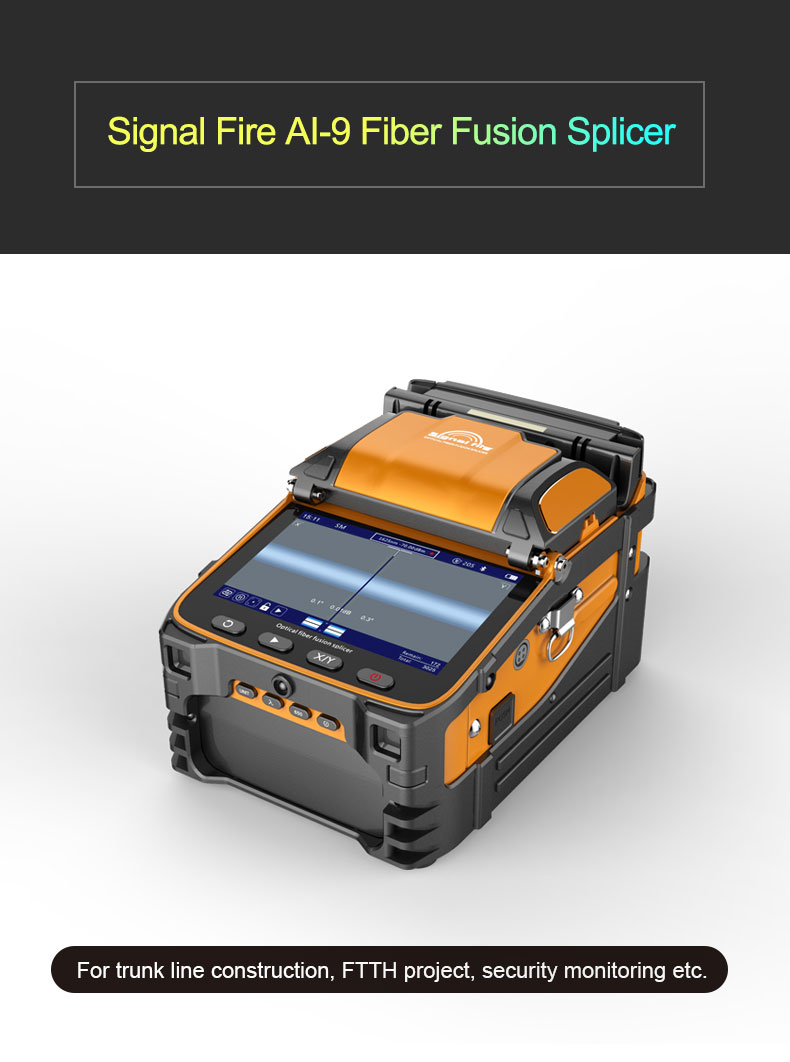

AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.

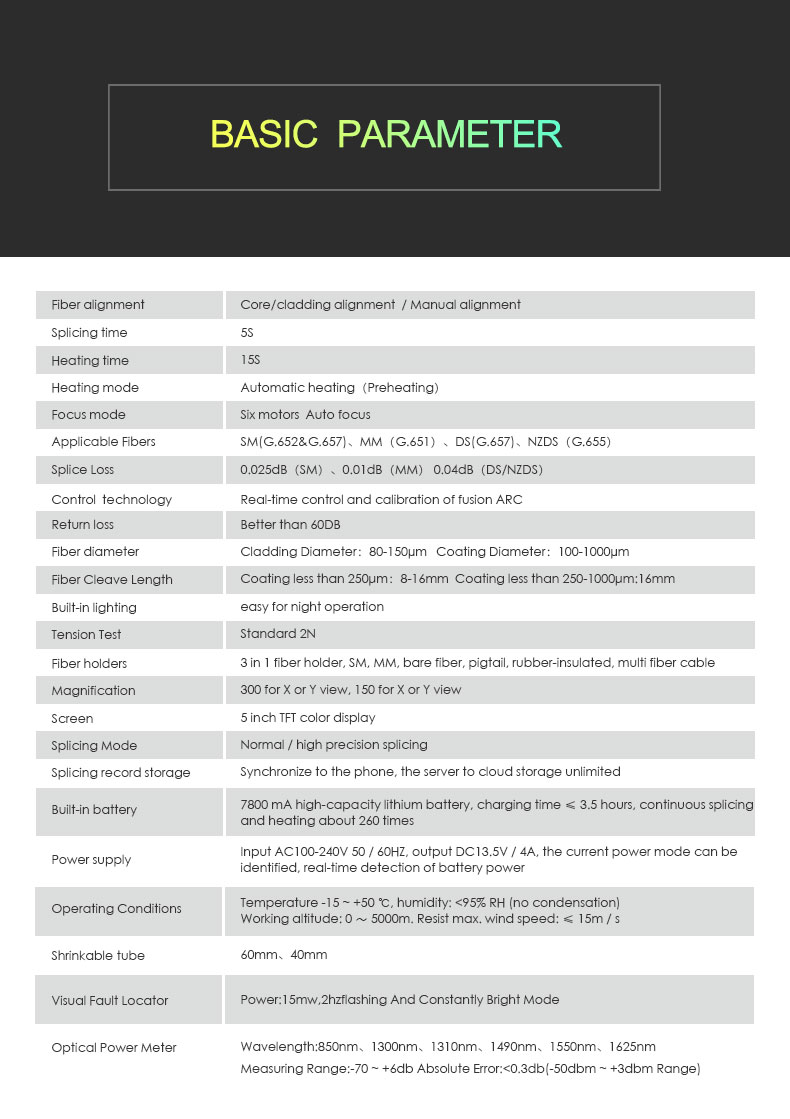

| Fiber Alignment | Core/Cladding alignment/Manual alignment |
| Splicing Time | 5S |
| Heating Time | 15S |
| Heating Mode | Automatic |
| Focus Mode | Six motors, Auto focus |
| Applicable Fibers | SM(G.652&G.657) MM(G.651) DS(G.657) NZDS(G.655) |
| Splice Loss | Better than 60DB |
| Fiber Diameter | Cladding diameter: 80-150μm Coating diamter: 100-1000μm |
| Fiber Cleave Length | Coating<250μm: 8-16mm, Coating<250-1000μm: 16mm |
| Built-in lighting | Easy for night operation |
| Tension Test | Standard 2N |

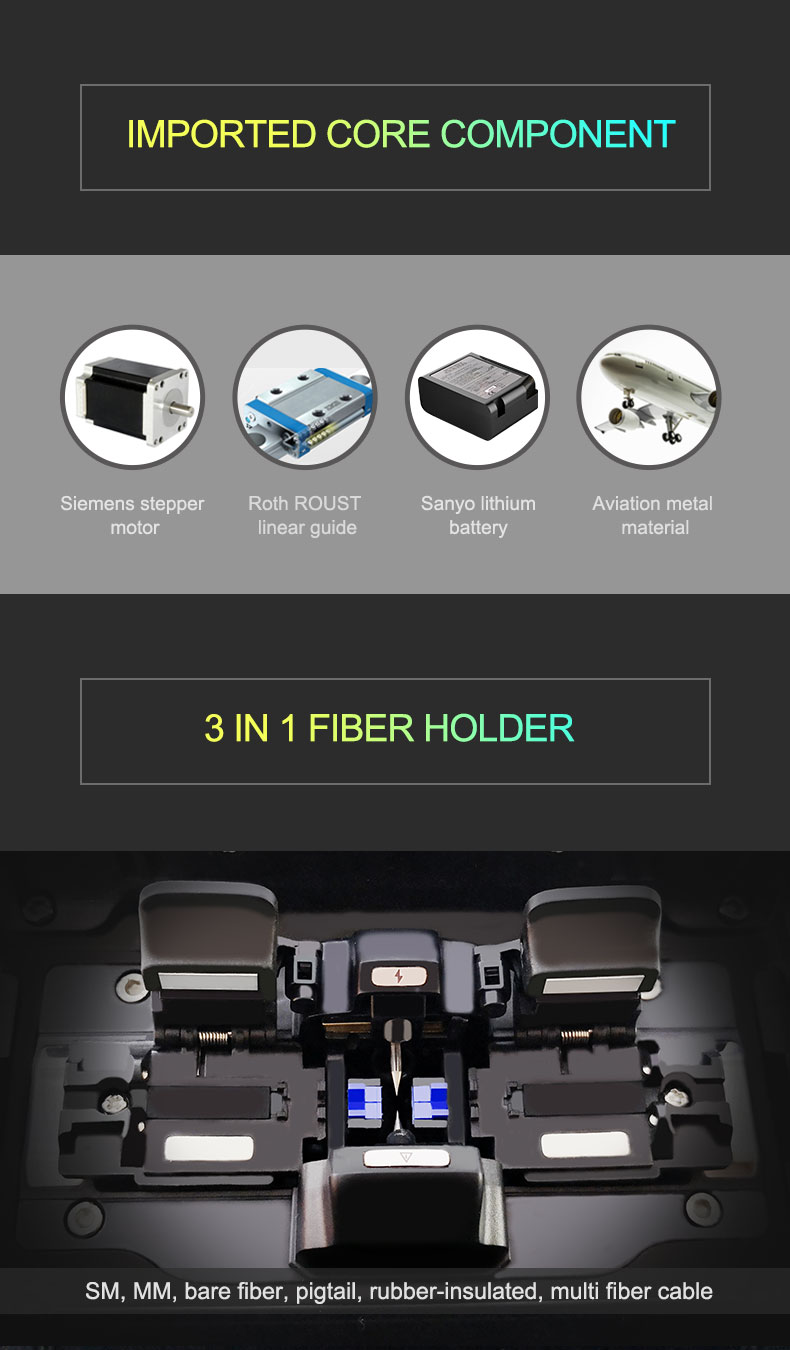

| Fiber Holders | 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, wire jumper, ruber-insulated wire |
| Magnification | 300 times for X-axis or Y-axis, 150 times for X-axis and Y-axissynchronization
|

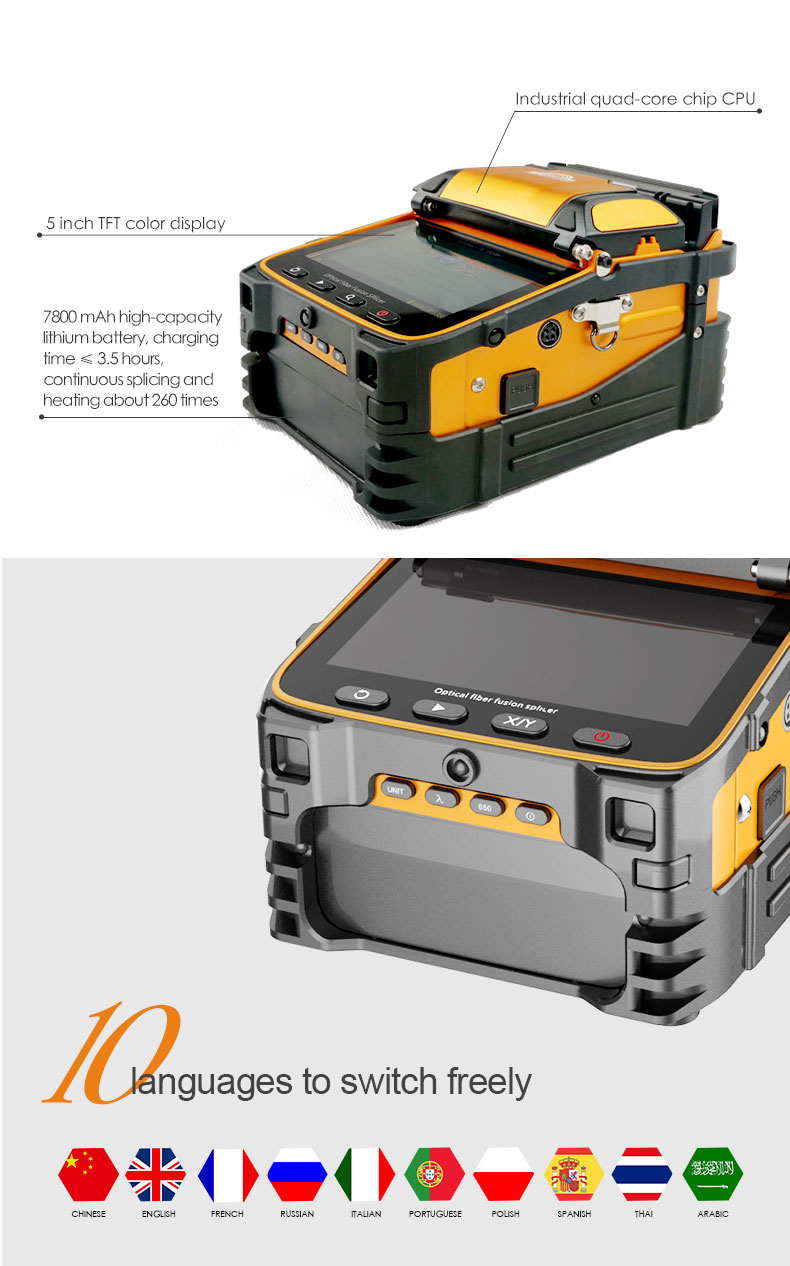

| Screen | 5 inch TFT color display |
| Splicing Mode | Normal/High precision |
| Splicing Record Storage | Sychronize to the phone, Server unlimited cloud storage |
| Built-in Battery | 7800mA high-capacity lithium battery, charging time<3.5H, continuous splicing and heating 240 times |
| Power Supply | Input AC 100-240V 50/60HZ, Output DC13.5V/4A
Power mode can be identified, Real time detection of battery power |
| Operation Conditions | Temperature: -15~+50℃, Humidity: <95%RH
Altitude: 0-5000m, Wind Speed: <15m/s |
| Shrinkable Tube | 60mm, 40mm |
| Package | 34*36*39cm |
| Weight | 10kg |
