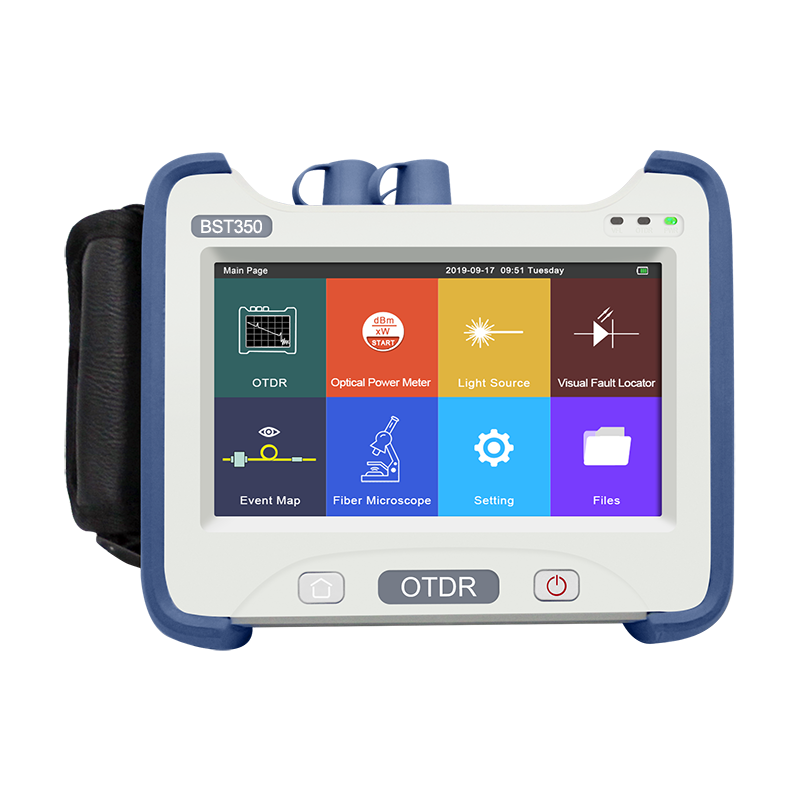

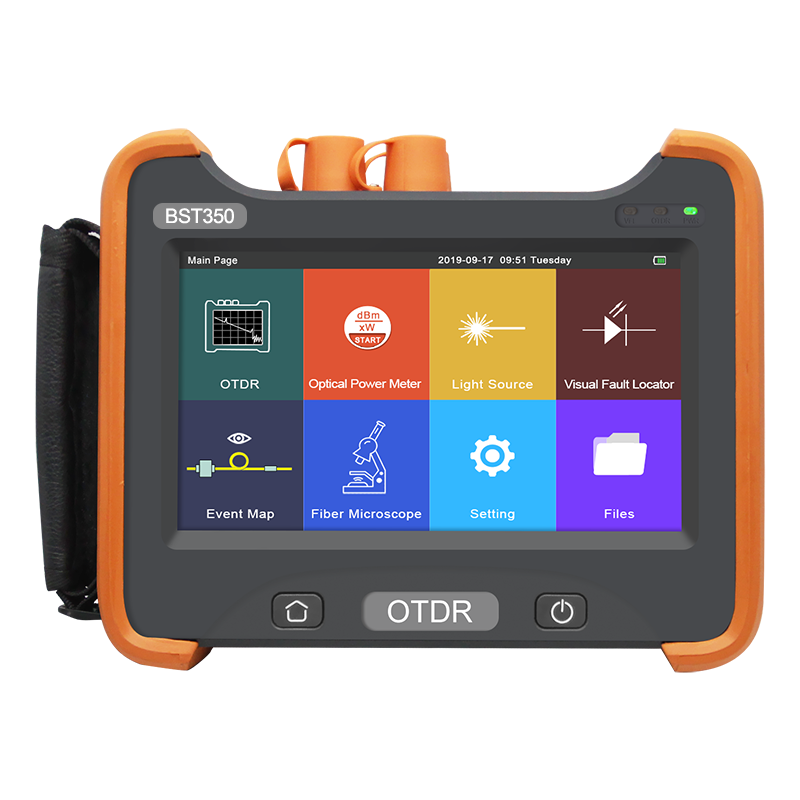

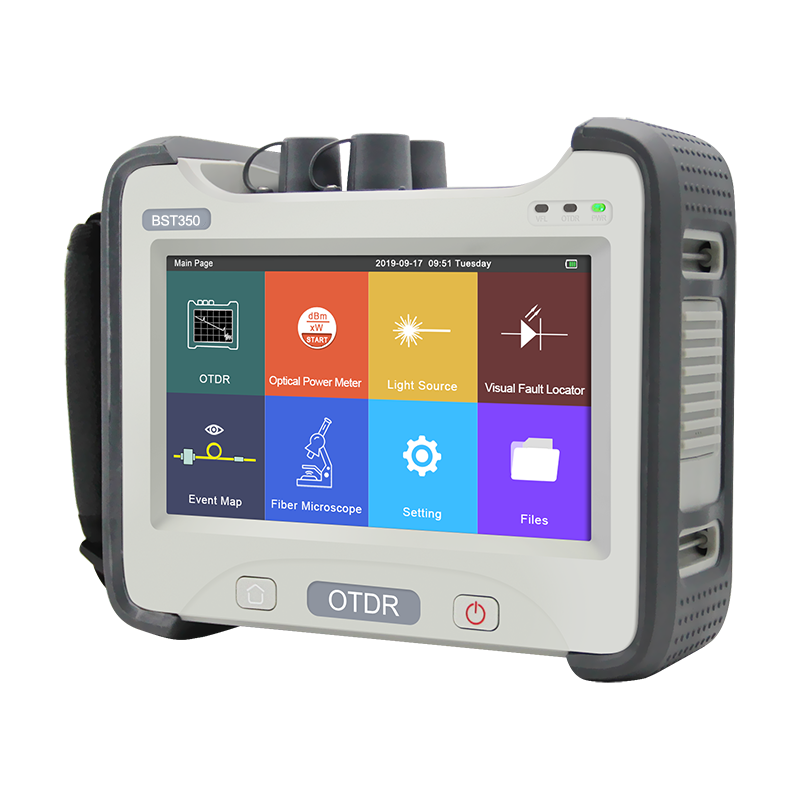

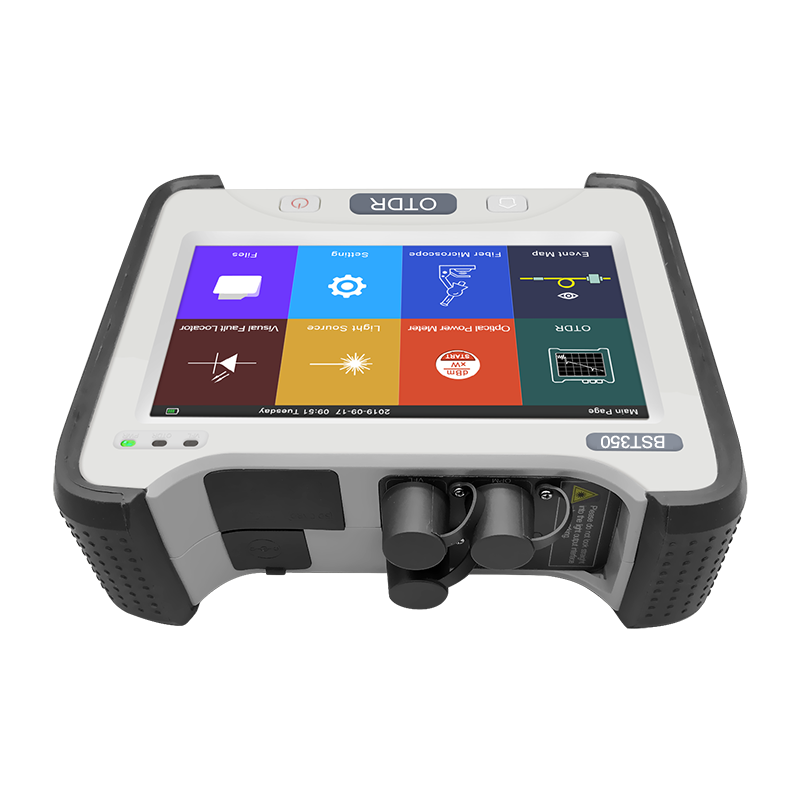

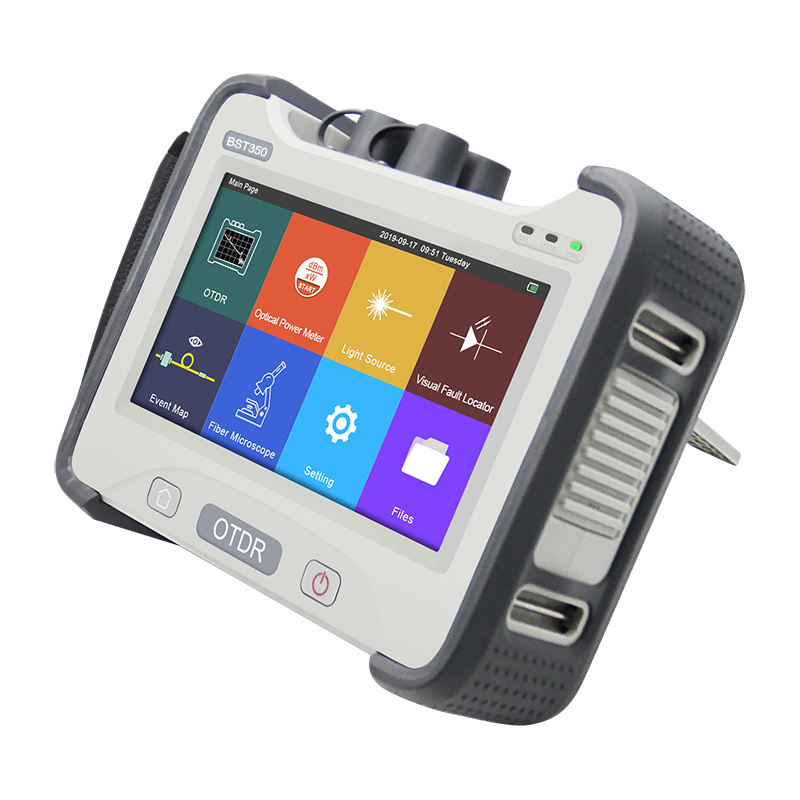

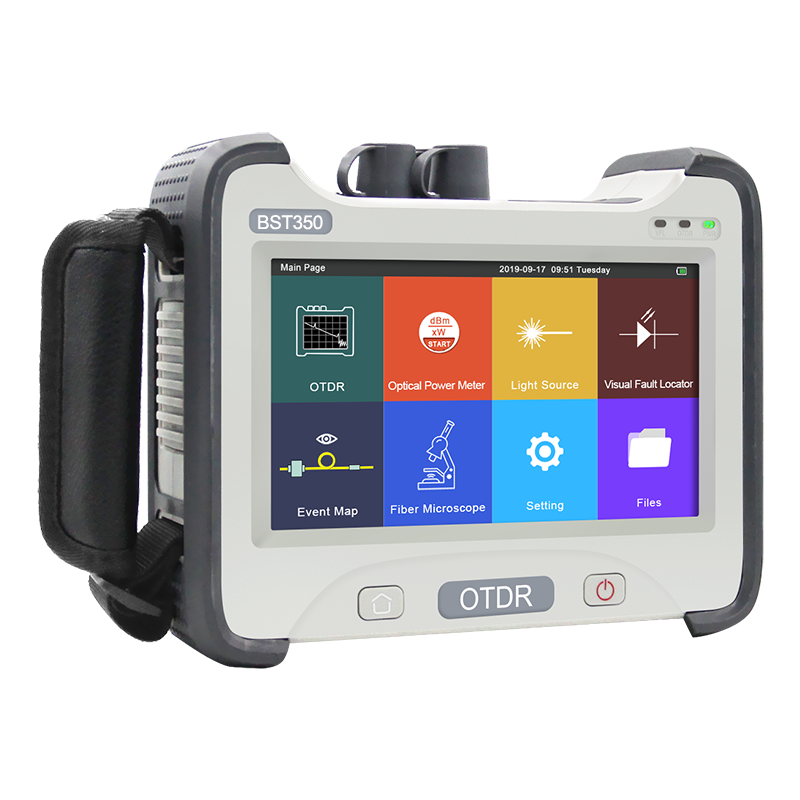

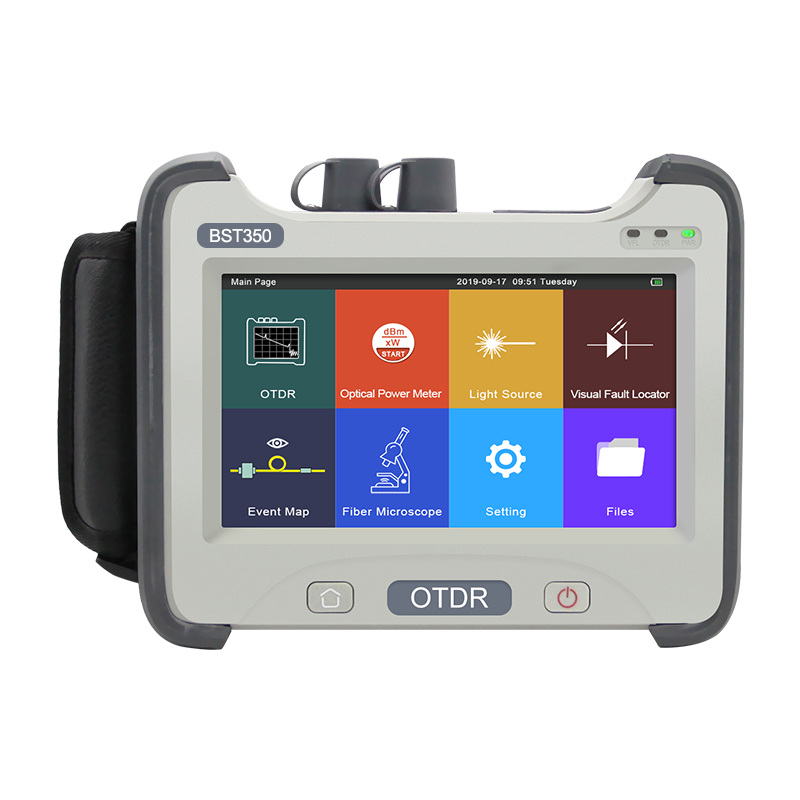

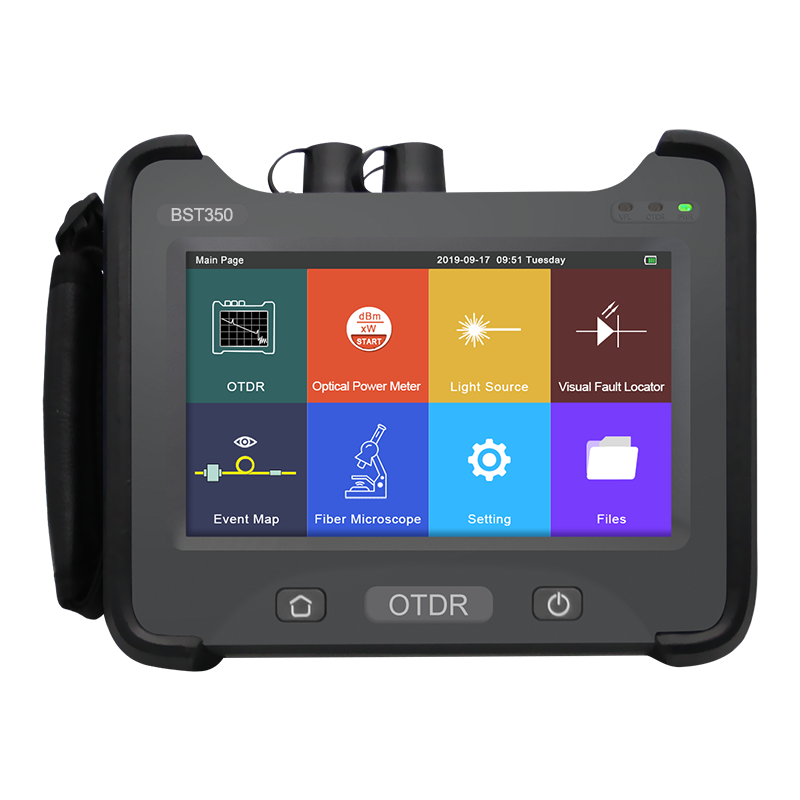

850/1300/1310/1490/1550/1625/1650nm SM MM OTDR Optical Fiber OTDR Tester With Power Meter VFL Optical Light Source

*OEM & ODM Accepted

Category: OTDR Tag: OTDR

Product Paramenters

Type	BST350- S-A32	BST3 50-S-A-35	BST350-S-A37	BST350-M26	BST350-S-AD38	BST350-S-AB38	BST350-S-42
Testing wavelength	1310/1550nm	1310/1550nm	1310/1550nm	850/1300nm	1310/1490/1550n	1310/1550/1625nm	850/1300/1310/1550nm
Dynamic range	32/30dB	35/33d B	37/35dB	20/26dB	38/35/36dB	38/35/36dB	20/26/42/40dB
Event Dead Zone	0.8m	0.8m	1m	1m	1m	1m	1m
Attenuation Dead Zone	4m	4m	4m	5m	4m	5m	5m
Pulse Width	3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
Testing Distance	500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km
Measurement Time	Use-defined (smart link) ; with real-time measurement function
Linearity	≤0.05dB/dB
Loss Threshold	0.01dB
Loss Resolution	0.001dB
Distance Resolution	0.01m
Sampling Resolution	minimum 0.25m
Sampling Point	Maximum 128,000 points
Distance Accuracy	±(1m+measuring distance×3×10-5+sampling resolution )
Internal visual source	10mw, CW/2Hz
Stable laser source	>-5dBm
DataStorage	80000 groups of curve
Interface	3 USB port
Display	7 inch capacitive touching screen
Battery	7.4V/6.6Ah lithium battery, continuous 8-10 hours
Working Temp	-10℃~+50℃
Storage Temp	-20℃~+75℃
Relative Humidity	≤90%, non-den
Dimension	230×185×70mm / 1.5kg

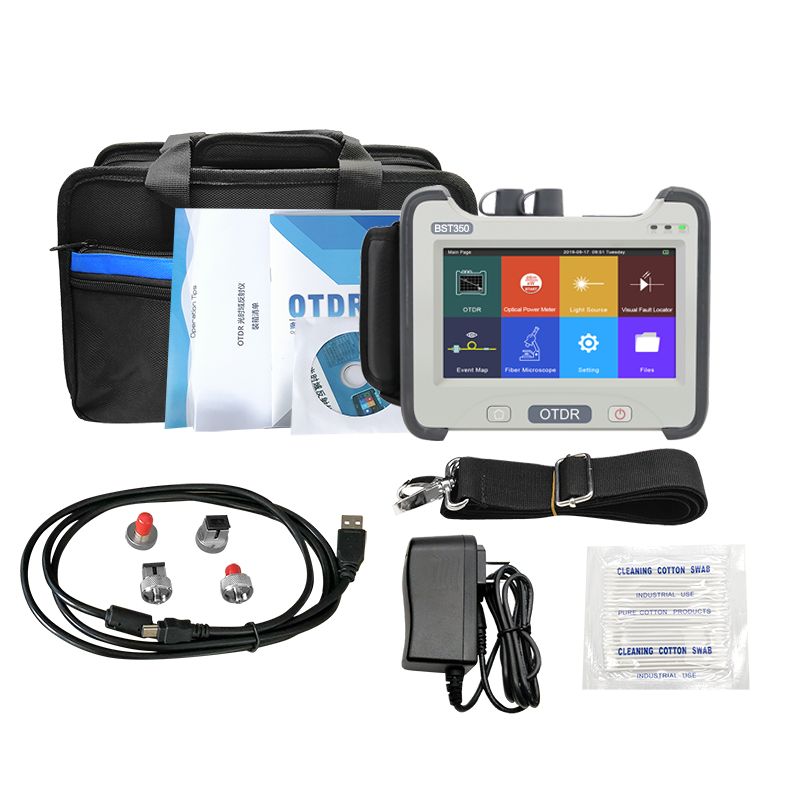

Accessories	Main unit, 8.4V power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case
Option	SC/ST, Bare fiber adapter

Order Options

How to choose the suitable OTDR:
1. What is the test fiber wavelength you want?
2. What is the dynamic range?
3. What is the event dead zone?
4. What is the attenuation dead zone?
5. What is the plug standard?

Optical Power Meter: 850/1300/1310/1490/1550/1625nm; -70~+10db or -50~+26db
Optical Light Source: 1310/1550nm
