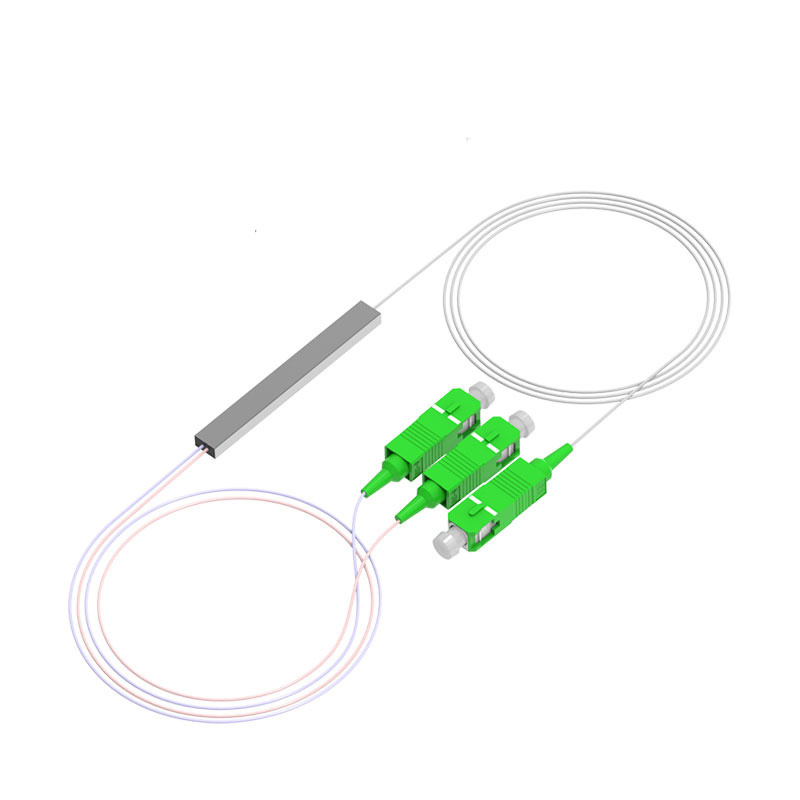

Fiber optic PLC Splitter 1*2 G657A SC APC 0.9mm micro mini type distributor
Feature
1.Low Insertion loss
2.Low PDL
3.Compact Design
4.Good channel-to-channel uniformity
5.Wide Operating Wavelength: 1260-1650nm
6.Wide Operating Temperature: -40°C – 85°C
7.High Reliability and Stability
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Fiber Type | SMF-28e or customer specified | |||||
Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
